YCS-103 Three-Phase Power Source for Energy Meter Testing

Nom De Marque:	GENY
Numéro De Modèle:	Le nombre de points de contrôle
Nombre De Pièces:	1
Prix:	negotiate rates
Conditions De Paiement:	T / T, L / C, D / P, T / T
Capacité à Fournir:	10 pièces/ 1 mois

Les informations détaillées

Description de produit

Les informations détaillées

Lieu d'origine:

Chine

Certification:

ISO, CE

Documents:

Catalogue——Meter Test S...m..pdf

Précision de réglage:

Meilleur que 0,05% à la valeur de l'intervalle final

Stabilité:

Mieux que 0,005 %/h (temps d'intégration 150 s)

Facteur de déformation:

Mieux que 0,3% pour la charge de résistance linéaire

Harmoniques:

2ème 21ème libre programmable

Alimentation en tension:

3×220/380V ± 10% ou sur mesure 50/60Hz ± 2Hz

Tester la sortie de courant:

3 × ((1 mA 100A)

Détails d'emballage:

Cas de contreplaqué

Capacité d'approvisionnement:

10 pièces/ 1 mois

Mettre en évidence:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

Description de produit

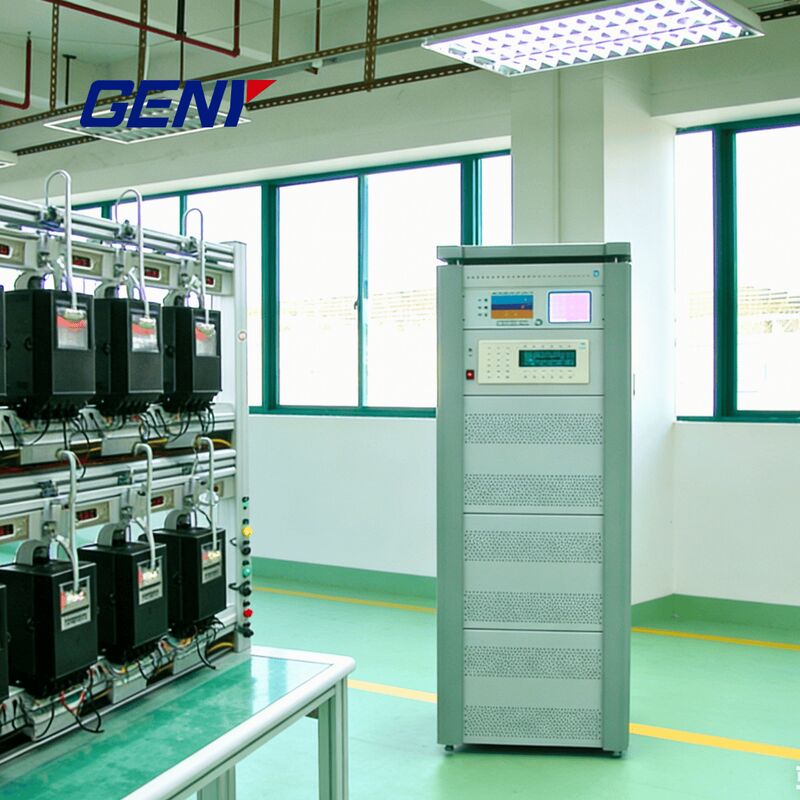

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards
