Détails des produits

Maison Produits

High-Precision Energy Meter Test Bench for IEC Accuracy Verification

High-Precision Energy Meter Test Bench for IEC Accuracy Verification

Nom De Marque:	GENY
Numéro De Modèle:	Le montant de la subvention est calculé à partir du montant de la subvention.
Nombre De Pièces:	1 pièces
Prix:	Négociable
Conditions De Paiement:	LC, T/T, D/P
Capacité à Fournir:	30 PC par mois

Les informations détaillées

Description de produit

Les informations détaillées

Lieu d'origine:

Chine

Certification:

ISO, CE

Tension:

Alimentation 240/415 V AC (+5% & -10%) ou sur mesure

Fréquence:

50/60 Hz ±2 Hz

Capacité électrique:

> 3 × 6kVA

Température ambiante:

-10°C … +40°C

Humidité relative:

35%… 95%

Mise à la terre du système:

Neutre solidement mis à la terre

Niveau de protection contre les surtensions:

≥ 10 kV/120 Joules (10/1000µs)

Détails d'emballage:

caisse en contreplaqué

Capacité d'approvisionnement:

30 PC par mois

Mettre en évidence:

IEC accuracy energy meter test bench

high-precision meter test equipment

stationary energy meter verification bench

Description de produit

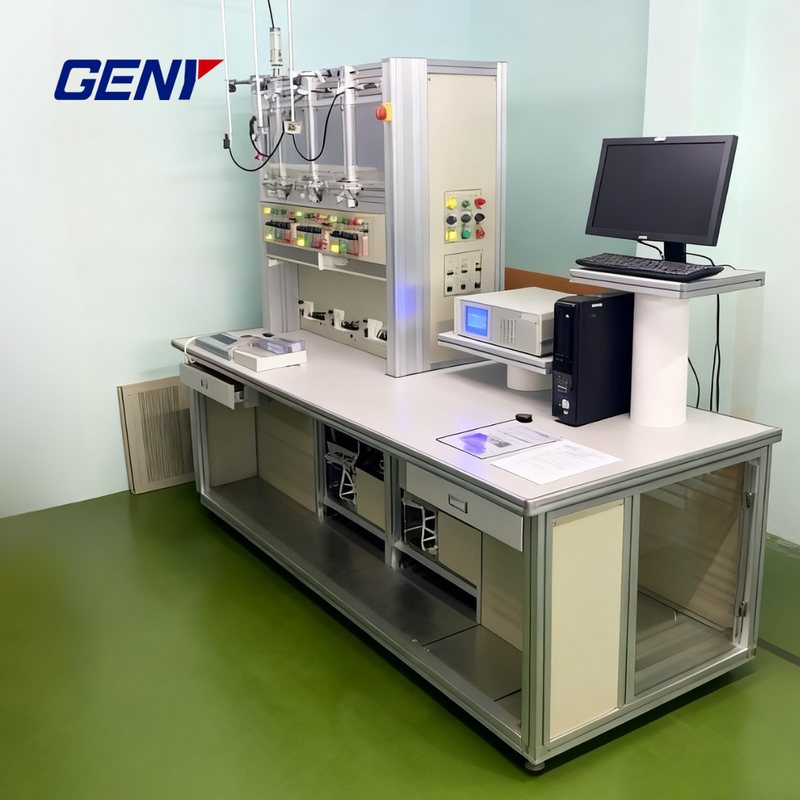

High-Precision Energy Meter Test Bench for IEC Accuracy Verification

Product Overview

Our Meter Test Bench is a high-precision system designed for comprehensive smart meter testing, energy meter calibration, and accuracy verification according to international standards (IEC 62052-11, IEC 62053-21/22/23). It provides reliable, automated testing for both single-phase and three-phase energy meters.

Key Features

Multi-Communication Interface Support: Supports RS232 and Ethernet communication ports for testing various smart meters and reference standards.
Calibrated Terminals for Test Bench Verification: Equipped with precision calibrating terminals for easy and accurate verification of the test bench system.
Single-Phase & Three-Phase Meter Testing: Compatible with both 1-phase and 3-phase energy meters, ensuring flexibility across all meter types.
Reference Standard Meter Accuracy Testing: Enables accuracy testing of the reference standard meter to maintain calibration integrity.
Pre-Warming Function: Automatically pre-warms meters before testing to stabilize measurement conditions and improve test accuracy.

Accuracy & Performance Tests

Accuracy Testing as per IEC Standards: Fully compliant with IEC 62052-11 and IEC 62053-21/22/23 for precise performance evaluation.
Creeping Test: Detects meter movement under no-load conditions to ensure meter stability and accuracy.
Starting Current Test: Verifies meter performance at minimal current levels according to IEC specifications.
Repeatability of Error Test: Confirms the consistency and reliability of meter measurement accuracy.
Dial Test: Evaluates mechanical meter register performance for proper functionality.

Influence Quantity & Harmonic Tests

Influence Quantity Tests: Assess meter accuracy under various influence quantities such as voltage, frequency, reverse phase sequence, and voltage unbalance.
Harmonic Influence Tests: Measures the influence of harmonic components in voltage and current circuits per IEC requirements.
Sub-Harmonics & Odd Harmonics Testing: Performs sub-harmonic and odd harmonic tests compliant with IEC 62052-11 / 62053-21/22/23 standards.
