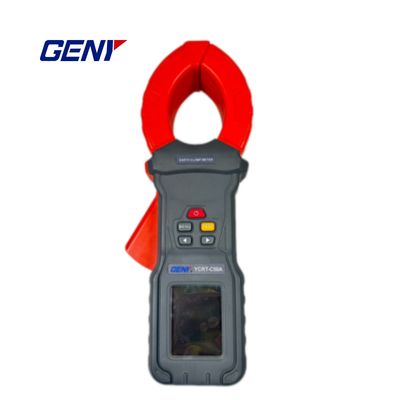

YCRT-C50A Ground Resistance Tester with 2.4-inch Color LCD Screen Rechargeable 3.7V Lithium Battery and 68mm Clamp Jaw

YCRT-C50A Ground Resistance Tester with 2.4-inch Color LCD Screen Rechargeable 3.7V Lithium Battery and 68mm Clamp Jaw

Nom De Marque:	GENY
Numéro De Modèle:	YCRT-C50A
Nombre De Pièces:	1
Prix:	negotiate rates
Conditions De Paiement:	T / T, L / C, D / P, T / T
Capacité à Fournir:	30 pièces/ 1 mois

Les informations détaillées

Description de produit

Les informations détaillées

Lieu d'origine:

CHINE

Certification:

ISO, CE

Précision garantie de la température et de l'humidité:

23 ℃ ± 5 ℃, inférieur à 75 % d'humidité relative

Alimentation électrique:

Batterie au lithium cc 3.7

résolution de résistance:

0.01Ω

Résolution actuelle:

0,001 mA

Résolution de tension:

0,01 V

Détails d'emballage:

Cas de contreplaqué

Capacité d'approvisionnement:

30 pièces/ 1 mois

Mettre en évidence:

2.4-inch Color LCD Screen Ground Resistance Tester

Rechargeable 3.7V Lithium Battery Earth Resistance Tester

68mm Clamp Jaw Ground Pile Clamp

Description de produit

YCRT-C50A Ground Pile Clamp Earth Resistance Tester

Key Features

Versatile testing methods: clamp, three-four-wire, and selection methods for grounding resistance
Comprehensive measurements: AC current (0.000mA-60.0A), ground voltage (1.00V-600V), and soil resistivity (0.00Ωm-9999kΩm)
2.4-inch color LCD screen (46mm*29mm) for clear data visualization
Bluetooth and USB connectivity for wireless data transfer to PCs/mobile devices
Rechargeable 3.7V lithium battery with power indicator and low-battery warning
68mm clamp jaw for non-invasive loop resistance measurements
500 dataset storage capacity with overflow indication and deletion capability
Compliant with IEC61010-1 (CAT III 300V, CAT IV 600V) and IEC61557-1 safety standards
Automatic shutdown (15-minute timeout) and adjustable backlight
Durable construction (273*106*53mm, 975g) with dust-proof, moisture-proof, and shock-resistant design

Advanced Functions

Loop resistance measurement (0.02Ω-2.00kΩ) without disconnecting grounding system
Precise soil resistivity measurement using 4-pole method (Winner method)
Single-point grounding system testing via two-point or three-point methods
True RMS AC current measurement and average ground voltage measurement
Customizable alarm thresholds with audible/visual alerts
Data storage and query system with batch deletion capability
Time synchronization and firmware updates via USB/Bluetooth
Adjustable soil resistivity measurement depth (1m-100m)
Multi-point and limited-point grounding system analysis
Manual data hold and automatic range shifting for simplified operation

Technical Specifications

Function	Ground resistance test, loop resistance test, AC current test, AC voltage test
Accuracy Conditions	23℃±5℃, below 75%rh
Power Supply	DC 3.7V Lithium battery
Resolutions	Resistance: 0.01Ω \| Current: 0.001mA \| Voltage: 0.01V
Clamp Size	68mm
Display	2.4 inch color LCD (46mm*29mm)
Dimensions	273mm106mm53mm
Measurement Rate	1 time/sec
Data Interface	USB for data transfer to computer
Storage Capacity	500 datasets with overflow indication
Safety Standards	IEC61010-1 (CAT III 300V, CAT IV 600V), IEC61557-1
Weight	975g (including battery)
