YCSS-101 Single Phase Standard Power Source

YCSS-101 Single Phase Standard Power Source

Nom De Marque:	GENY
Numéro De Modèle:	Le code YCSS-101 est utilisé.
Nombre De Pièces:	1 pièce
Prix:	negotiate rates
Conditions De Paiement:	T/T,L/C,D/P,T/T
Capacité à Fournir:	5 séries / 1 mois

Les informations détaillées

Description de produit

Les informations détaillées

Lieu d'origine:

Chine

Certification:

ISO, CE

Voltage de sortie d'essai:

Pour les véhicules à moteur électrique

Puissance de la tension de sortie:

Max.25VA

Courant de sortie d'essai:

1mA-120A

Plage d'angle de phase:

0 -- 360°

Fréquence:

45 Hz à 65 Hz

Détails d'emballage:

caisses de contreplaqué

Capacité d'approvisionnement:

5 séries / 1 mois

Description de produit

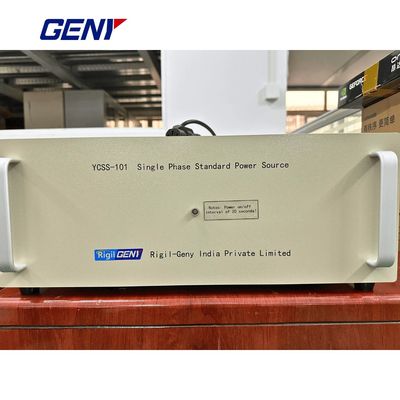

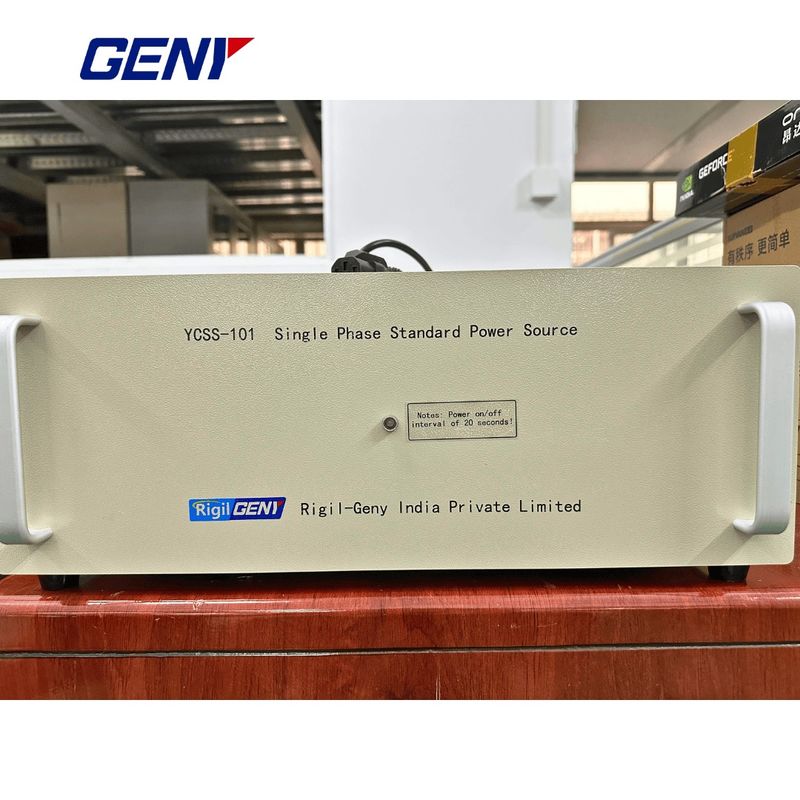

YCSS-101 Single Phase Standard Power Source

Guangzhou GENY Electric Co. Ltd. YCSS-101 Single Phase Standard Power Source is an essential calibration instrument for ammeters, wattmeters, energy meters, and power frequency phase meters, widely used in metrology departments, power utilities, industrial and mining enterprise calibration labs, and meter manufacturing facilities.

Features & Functions

Portable & Integrated
Compact design with integrated reference standard and power source. Perfect for on-site testing anywhere.
High Performance-Price Ratio
Affordable yet powerful, offering great value for money.
Wide Output Range
Covers 0V–480V voltage and 1mA–120A current, suitable for various meters.
Dual Calibration Capability
Supports simultaneous calibration of two meters or active/reactive power calibration for one meter, increasing efficiency.
User-Friendly Operation
Manual keyboard and PC automation options for flexible use.
Multiple Communication Ports
Internet and RS 232 interfaces for easy data transfer and management.

Specifications

Voltage
Test voltage output	0V-480V	Resolution	1mV
Power of the voltage output	Max.25VA	Setting accuracy	0.05% at 50-400V
Stability	0.03%/h (integration time 150s)	Harmonics	2nd-41st free programmable
Distortion factor	<0.2% for linear resistance load
Current
Test current output	1mA-120A	Setting accuracy	0.05% at 1mA-120A
Power of the voltage output	Max.120VA	Stability	0.003%/h (Integration time 150s)
Resolution	0.2mA	Distortion factor	<0.2% for linear resistance load
Harmonics	2nd-21st free programmable
Phase angle		Frequency
Range	0°-360°	Range	45Hz-65Hz
Resolution	0.001°	Resolution	0.0001Hz
Setting accuracy	0.005°
Pulse output
High frequency output	>20A FH=10^7; >2A FH=10^8; >0.2A FH=10^9
Pulse Input
Input channel	2
Input frequency	Max.100kHz
Other
Voltage Supply	220V±10% 50/60Hz±2Hz	Dimensions (W×H×D) (mm)	484x184×543
Ambient temperature	-10°C-+40°C	Weight (kg)	15
Relative humidity	35%-85%	Conformity	CE conform
